Externally Mounted Reservoir





Installation Instruction

  • Parts included in the package:
  • 1 x Aluminum Reservoir
  • 1 x Plastic Cap
  • 2 x Mounting Bracket
  • 4 x Thumb screw

Described below is the recommended installation instruction of the water reservoir.

Step 1



Step 2

Install one of the mounting brackets on the back of PC case. Secure the bracket with the screws included.  We recommend that the existing 80mm fan mounting holes on the back of a PC case shall be used so no drilling is required.

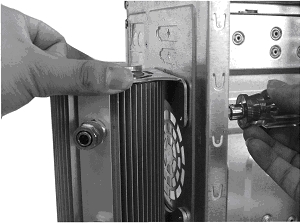

Place the reservoir on the installed bracket, making sure that the reservoir sits properly on the bracket.  Use the included thumb screws to secure the reservoir on the installed bracket. Serious damage may occur if dropping the reservoir.



Step 3

Step 4

Install another mounting bracket on the back of PC case. Secure the bracket with the screws included.



Use thumb screws to secure the reservoir on the installed bracket.

WT-TB Instruction.doc     10-23-2004
