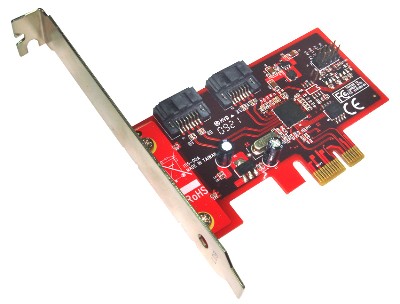

Dual Ports Low Profile 6Gbps SATA III PCIe 2.0 Host Adapter

Dual Ports Low Profile 6Gbps SATA III PCIe 2.0 Host Adapter

Part number: PCIE-6GSATA

Features & Specification
6Gbps SATA III 2 Ports
Compliant with 5Gbps PCI Express 2.0
Fully compliant with Serial ATA specifications 2.6
Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps 1.5Gbps
Supports ATA and ATAPI commands
Supports Native Command Queuing (NCQ)
Support AES-256
48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
Low Profile PCI Form Factor
Includes an additional Low Profile Bracket
Hot-plug capability
Two Pin headers on board for LED connection
Completely with drivers for 64bit / 32bit Windows 7, Vista, XP and Server 2003, 2008
64bit / 32bit Windows 7 Built-in Driver support
Fully RoHS compliant
