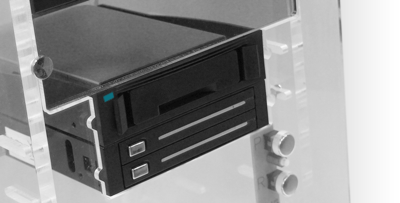

Easy Swap 2.5" SATA HDD Mobile Rack


Easy Swap 2.5" SATA HDD Mobile Rack
(Fit 3.5" Bay)

Part Number: MT210PN

Click for larger pictures

Installation Instruction Download

Supports the height of 2.5" HDD up to 15mm
Tool-Free HDD installation , no screw is required.
Perfectly fits 3.5" external space of PC tower case
Supports SATA I/II transmission rate


The MT210PN is designed under HDD mobile rack concept. You can install it into your PC cabinet for quick storage expansion by plugging 2.5" SATA /SSD drive in few seconds. MT210PN is compliant with SATA II transmission up to 3Gb/s.

The special-made HDD tray of MT210PN is created to fit "Tool-Free HDD Installation" and supports the height of 2.5" HDD up to 15mm, since the mobility is sometimes the key to free your portable data request. In sum, the mobile rack products based on its reliability and convenience are fancy equipments for power PC users.


HDD Compatibility 1 x 2.5" SATA /SSD (up to 15mm height)
Casing Material SECC Metal + Plastic
LED Indication Power Indication
Transfer Rate SATA II 3Gb/s, compliant with SATA I 1.5Gb/s
PC Connection 15 pin SATA power cable 7 pin SATA data cable
M/B requirement South Bridge Chip Version ICH7 or above
Minimum System Windows 2000/XP/Vista MAC OS X
Product Dimension 143.40 x 101.50 x 25.50 mm (L x W x H) , 20 sets / carton

SATA Cable SATA power cable Screws
