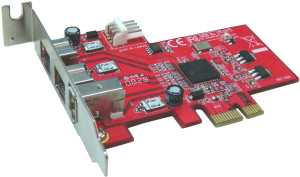

1394b & 1394a 3-port Combo PCIe Host

1394b & 1394a 3-port Combo PCI Host

Part number: PCIE-1394AB-3

Add 2 Ports IEEE 1394b/FireWire 800 in addition to 1Port 1394a at Low Profile PCI-e card to Transmit and Receive Data at 800/ 400/ 200/ 100 Mbps

	Provides Two Fully Backward Compatible, Bilingual P1394b 9-Pin Ports at up to 800 Megabits per second
	One 1394a regular 6-Pin Port
	On Board Power Connector to supply power up to 1.5 amps per Port
	1-lane 2.5Gbps PCI Express
	Low Profile PCI Form Factor
	Windows and Mac Built-in drivers

Features & Specification

PCI Express
	Includes Low profile PCI and Regular size PCI Brackets
	1-lane 2.5Gbps PCI Express host interface
	Low Profile PCI Form Factor
	Fully RoHS compliant

IEEE 1394 ( FireWire 800 /400 /200 /100 )
	On Board Molex mini 4Pin Power connector to have sufficient 1394 1.5A/12V bus power from PC power supply
	Supports data transfer rate up to 800 Mbps
	Fully supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabite signaling rates
	Fully Supports Provisions of IEEE 1394a-2000 and 1394-1995 Standard
	One External 1394a-2000 Fully Compliant Cable Port at S400, S200, S100 speed
	Two External Bilingual (9-pin) Cable Ports at S800 or S400b speed
	Supports Plug and Play
	Supports Windows OS and Mac OS
	ubCoreTM free Windows Vista Driver support
	Chipset : TI
